DeviceNet Products
|

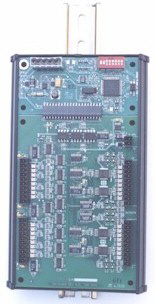

DN-1600
DeviceNet 16-in, 16-out 24V Discrete I/O
The DN-1600 is a compact I/O module that provides direct
connection of
sensors, limit switches, and other discrete input devices. The DN-1600 also provides output drivers for
relays, solenoids, lamps and other discrete output devices. Connections are made through standard plug-in
screw terminals. The module is housed in a DIN rail mounting shell.
Features:
- Supports up to 16 discrete DC inputs which can be any mix of NPN (sinking)
and PNP (sourcing)
- Supports up to 16 PNP (souring) DC outputs with drive capability of 1A
each and output protection
- Standard DeviceNet slave with non-volatile storage of network parameters.
- Supports Polled, Cyclic and Change-of-State I/O
- Plug-in screw terminal connectors for I/O, Auxiliary Voltage and DeviceNet
connector
- Housed in plastic shell for DIN rail mounting
- Diagnostic LED's for each I/O point and for Network and Module status
- DeviceNet bus powered except for auxiliary powered outputs
- Node address and baud rate are switch or soft settable.
DeviceNet Features:
| Device Type: |
Generic |
| Explicit Peer to Peer Messaging : |
N |
| I/O Peer to Peer Messaging: |
N |
| Configuration Consistency Value: |
N |
| Faulted Node Recovery: |
N |
| Baud Rates: |
125K, 250K, 500K |
| Master/Scanner: |
N |
| I/O Slave Messaging: |
|
| Bit Strobe |
N |
| Polling |
Y |
| Cyclic |
Y |
| Change of State (COS) |
Y |
| Configuration
Method: |
EDS |
|
|
