DeviceNet Products

DN-500
DeviceNet 5-in, 5-out Discrete I/O for use in Lighted Push Button Pendant applications

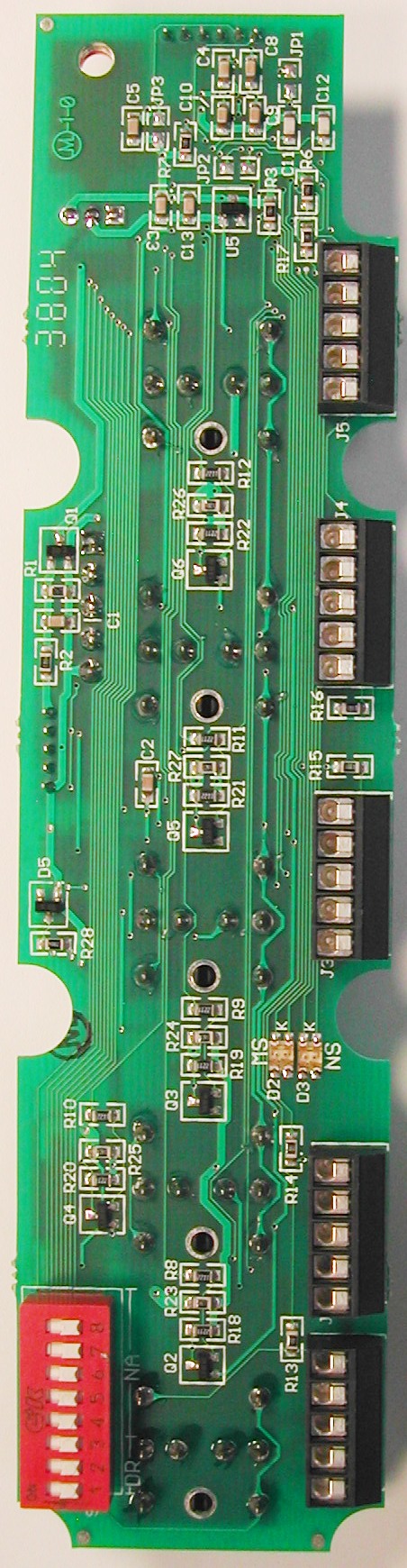

The DN-500 module provides a DeviceNet connection to five 5VDC general purpose inputs and five bus voltage 40mA outputs with overload protected and faults signals. The DN-500 offers five pluggable Square-D sockets (PN: ZB6Y010) ideal for any lighted push button panel or pendant application. Also provided are five screw terminal connectors in parallel with the sockets to allow for alternative configurations or the addition of alternative push button vendors' products.

Features:

  • 5 PNP (sourcing) 5VDC inputs
  • 5 bus voltage, 40mA, PNP (sourcing) DC outputs
  • Group 2 Only Server with non-volatile storage of network parameters
  • Polled, Cyclic and Change-of-State I/O Connections
  • Square-D sockets (PN: ZB6Y010) or screw terminals for I/O
  • Diagnostic LED's for Network and Module Status
  • Node address and baudrate set by DIP switch or over the network

DeviceNet Features:

Device Type: Generic
Explicit Peer to Peer Messaging : N
I/O Peer to Peer Messaging: N
Configuration Consistency Value: Y
Faulted Node Recovery: N
Baud Rates: 125K, 250K, 500K
Master/Scanner: N
I/O Slave Messaging:
    Bit Strobe N
    Polling Y
    Cyclic Y
    Change of State (COS) Y
Configuration Method:  EDS
